Rigid and Flexible Nephroscopes
Durability and Versatility
Trusted for more than 100 years, Richard Wolf nephroscopy instrumentation is utilized by surgeons around the world to treat stones in the kidneys that are too large for a standard ureteroscope. Our versatile portfolio of nephroscopes delivers diagnostic and therapeutic options for kidney and bladder stones. From the Extra Long Percutaneous Nephroscope to the Ultra-Mini Nephroscope, Richard Wolf is the all-around solution for nephroscopy.

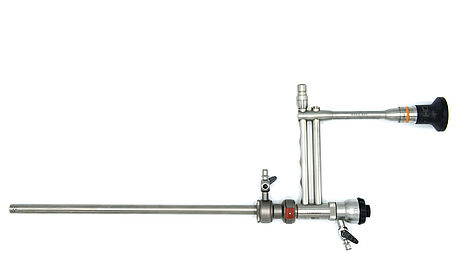

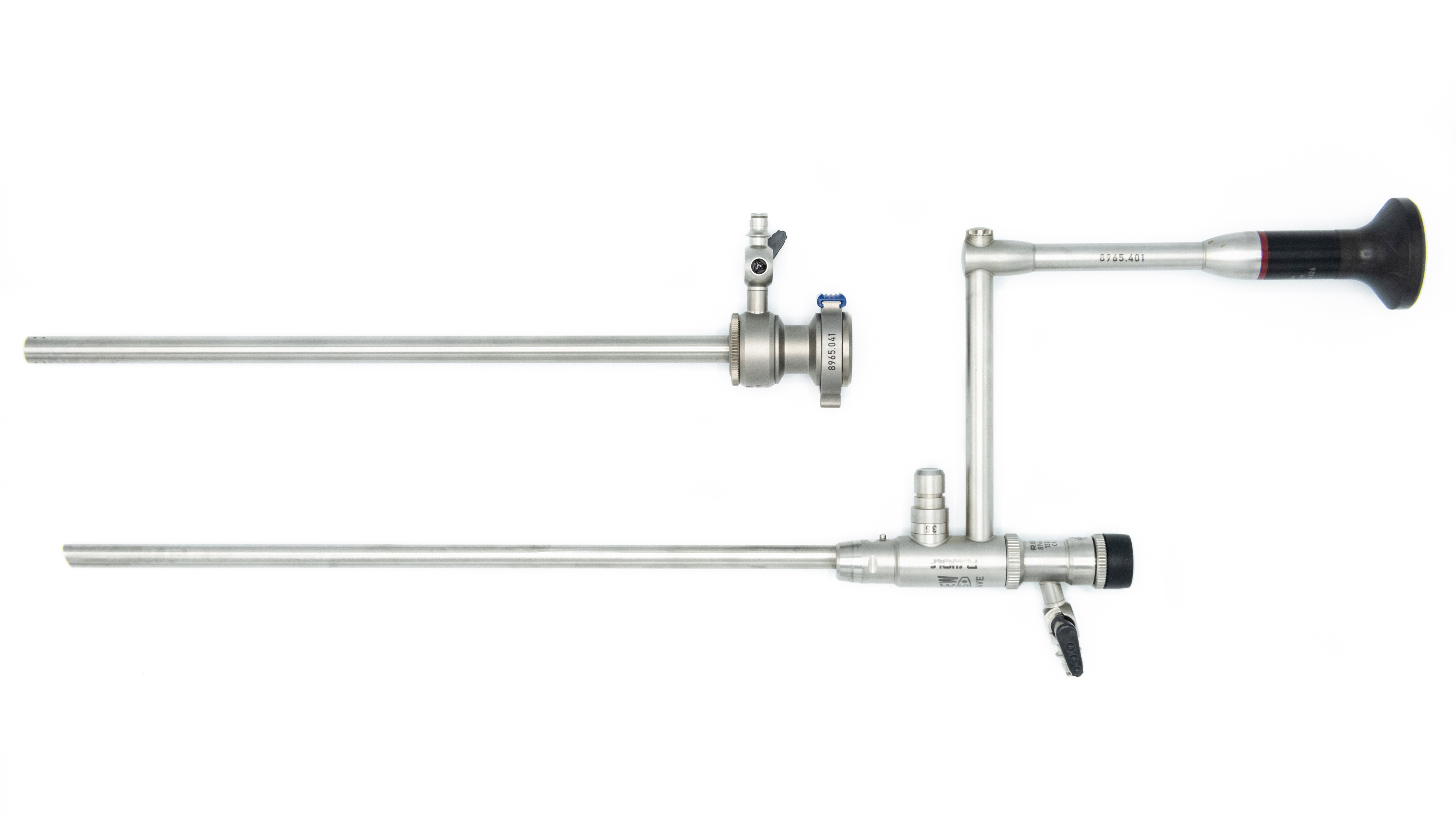

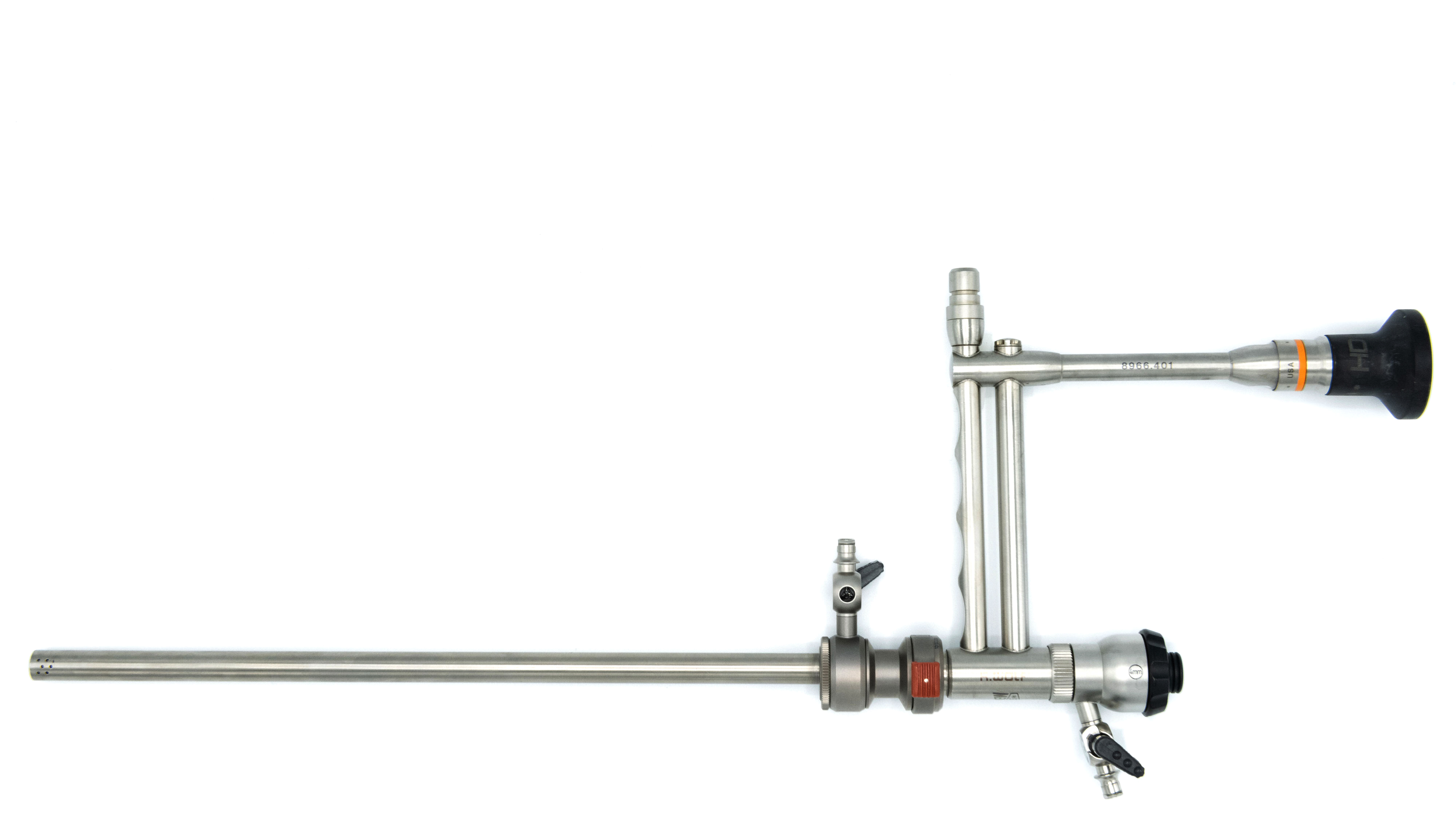

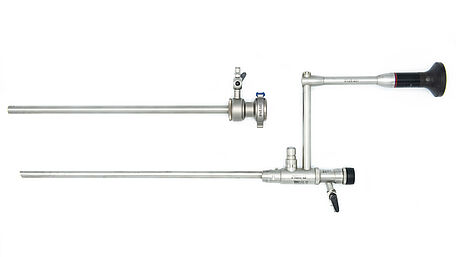

Parallel eyepiece with oval working channel for accessory instruments up to 4 mm (12 Fr.) diameter
250 mm working length
Utilizes standard length percutaneous forceps and probes
The working channel features a self-sealing membrane that eliminates the need to open and close levers, allowing the user to insert and remove instruments quickly and easily

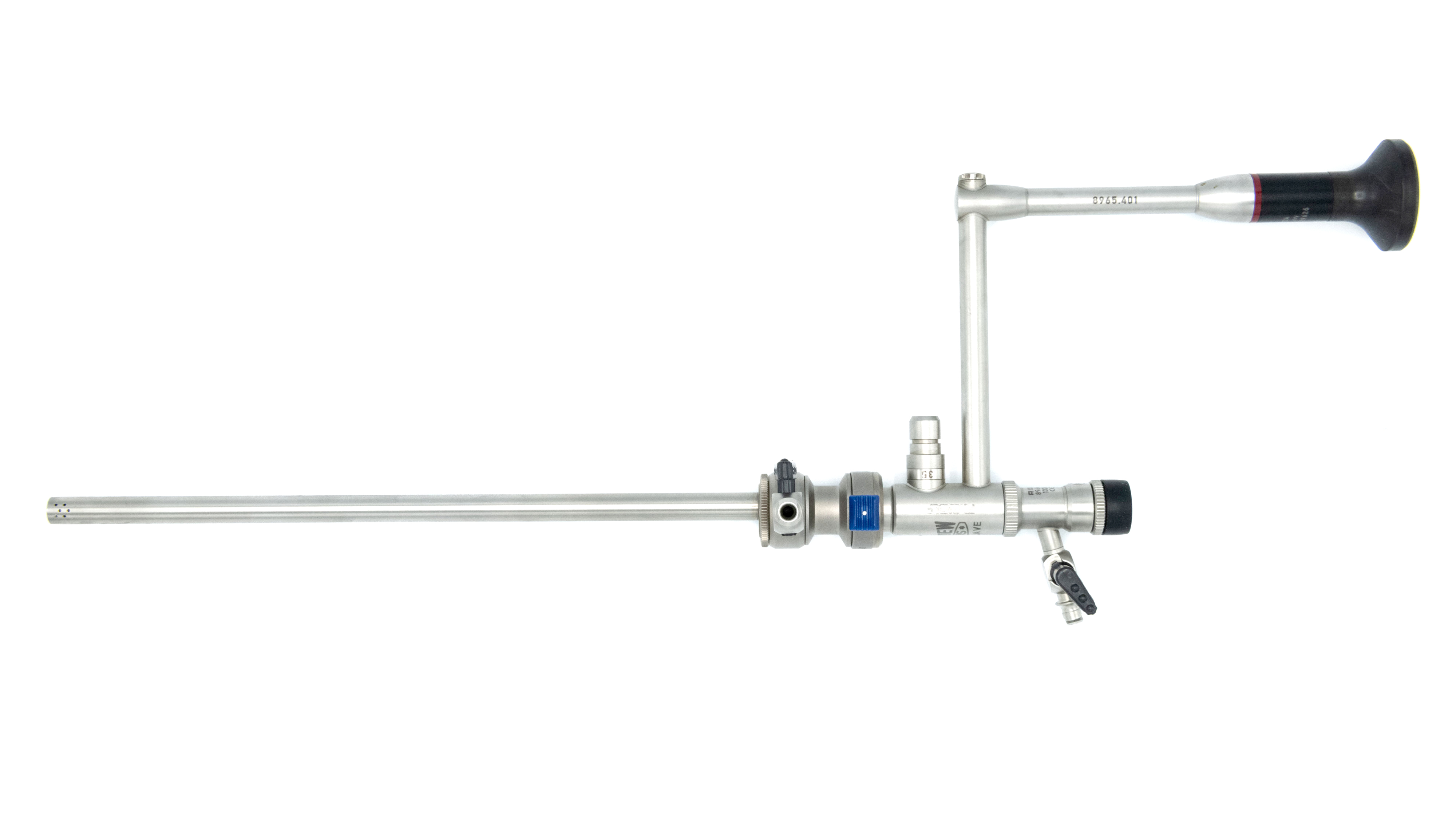

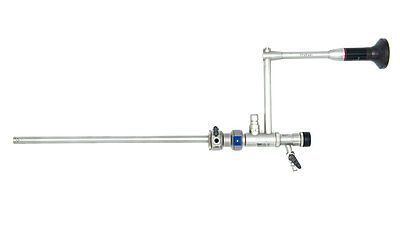

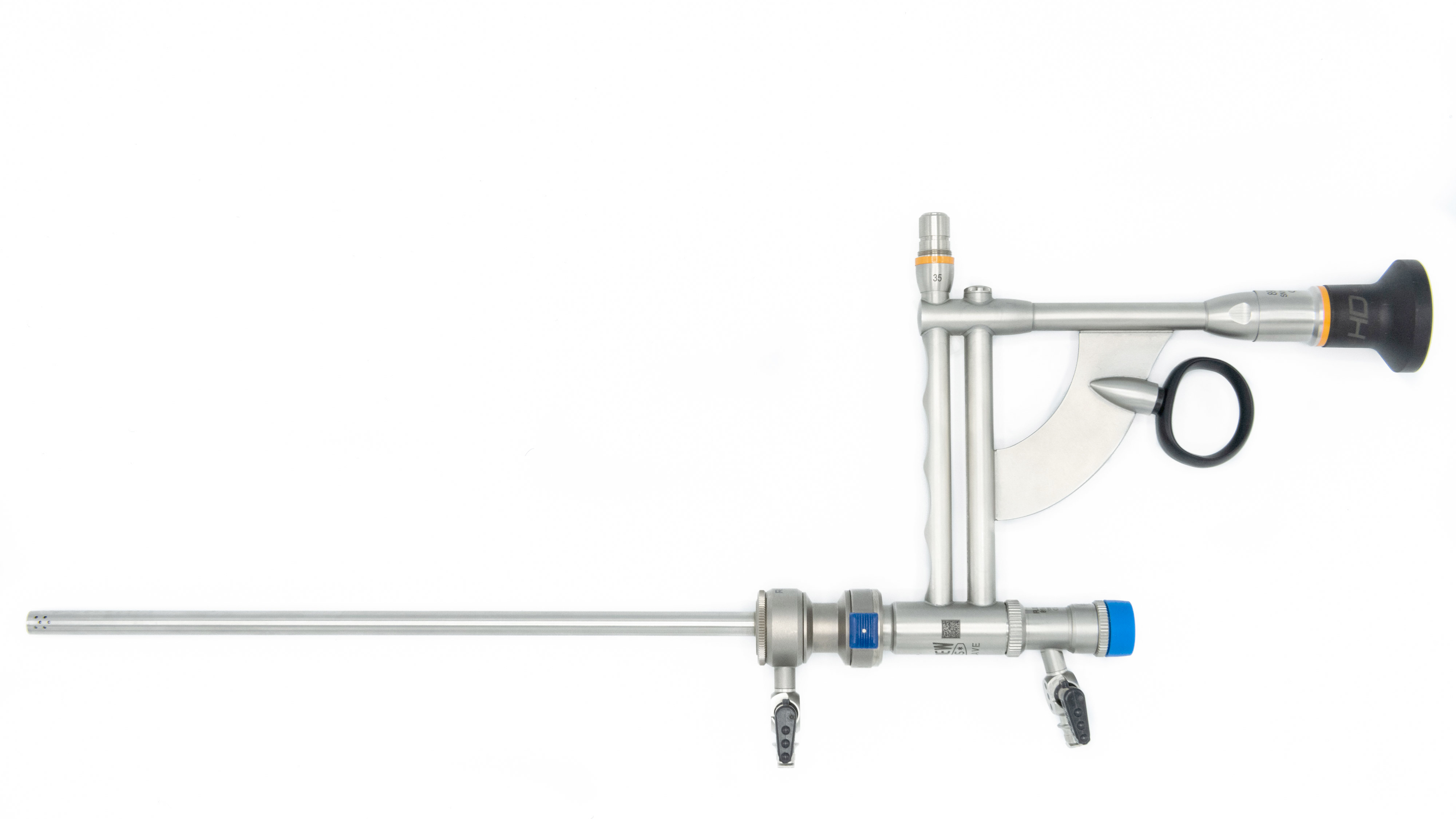

Large oval working channel for auxiliary instruments up to 3.5 (10.5 Fr.) mm diameter while maintaining efficient irrigation
224 mm working length
User-friendly with continuous irrigation option, rotatable irrigation ring on the sheath and automatic valve
Parallel or lateral eyepiece option is available

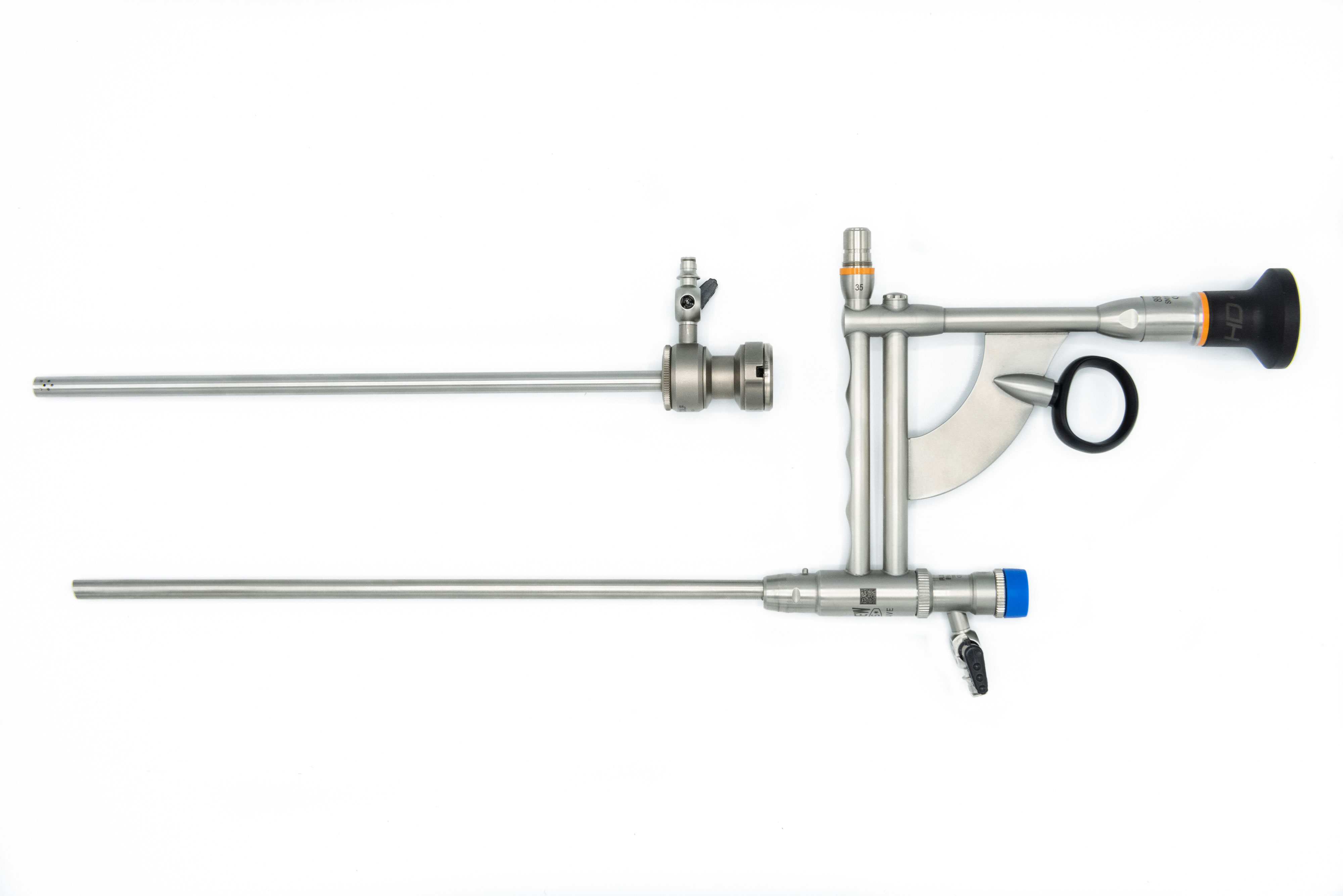

Parallel eyepiece with large oval working channel for auxiliary instruments up to 3.5 mm (10.5 Fr.) diameter while providing continuous irrigation
224 mm working length
Ergonomic design with thumb ring and user-friendly automatic valve allows for comfortable and optimum handling

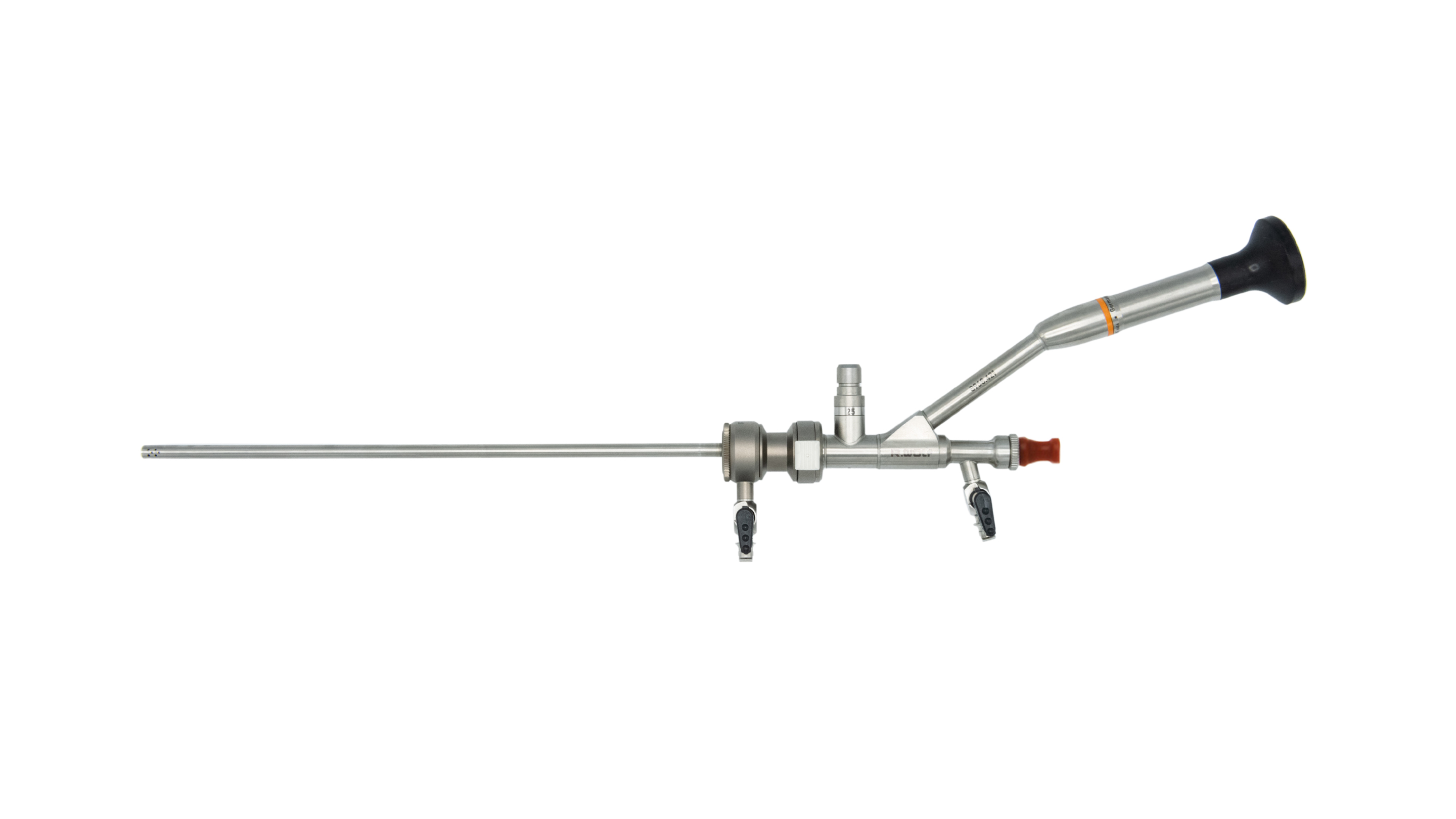

Laterally offset eyepiece, outer diameter of 12 Fr., 6 Fr. working channel, automatic valve with sealing membrane
225 mm working length
Stainless steel dilators for time-saving, one-step dilatation
Can be used with a 15 Fr. or 18 Fr. sheath

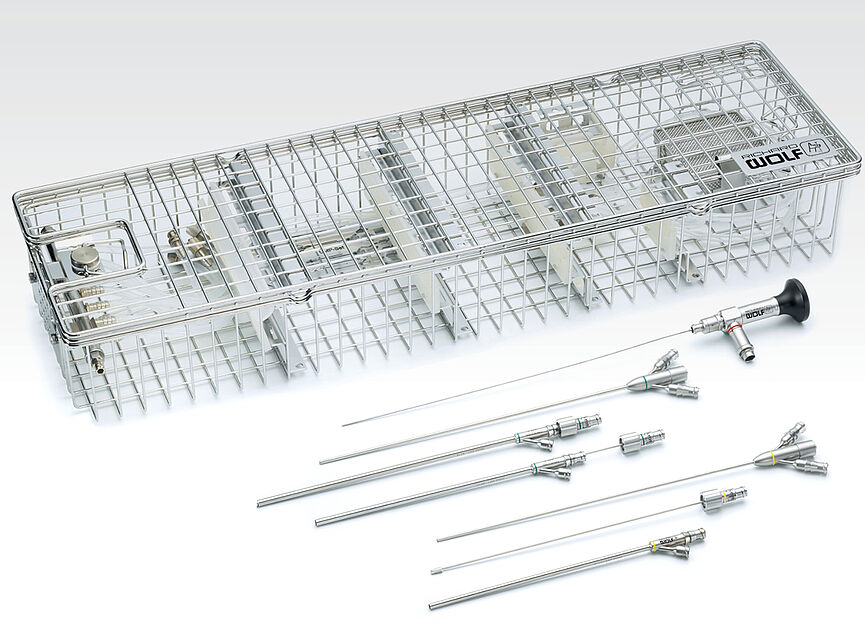

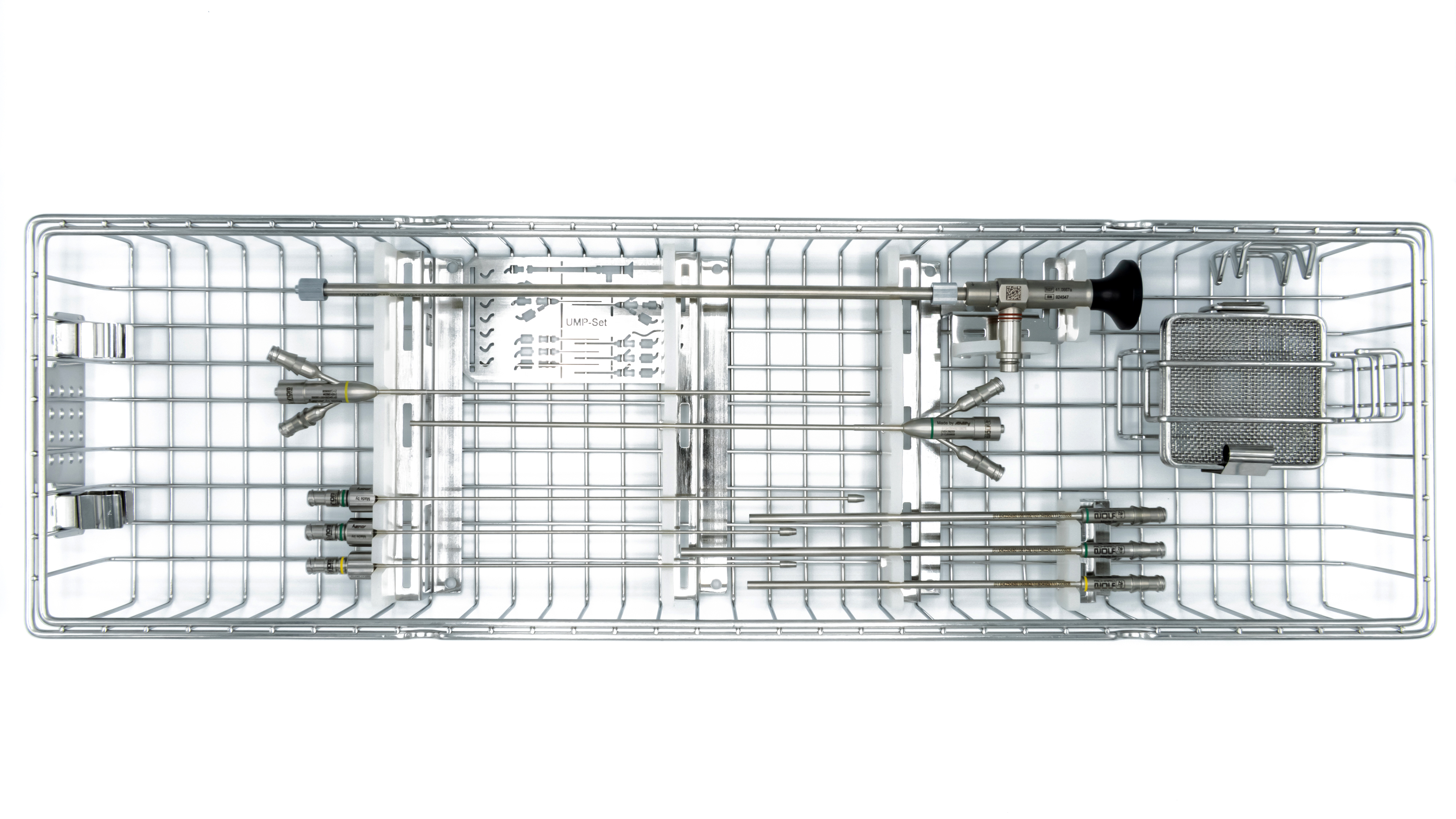

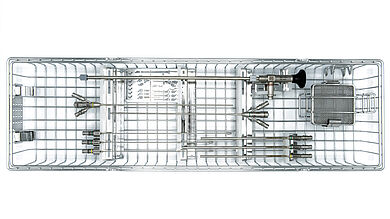

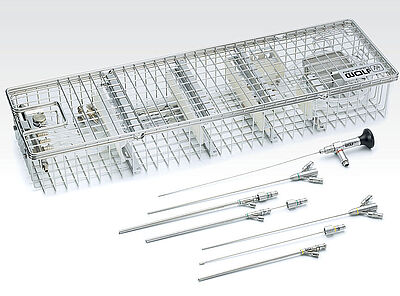

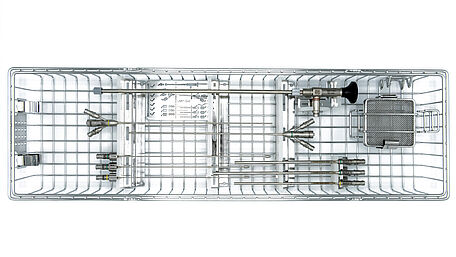

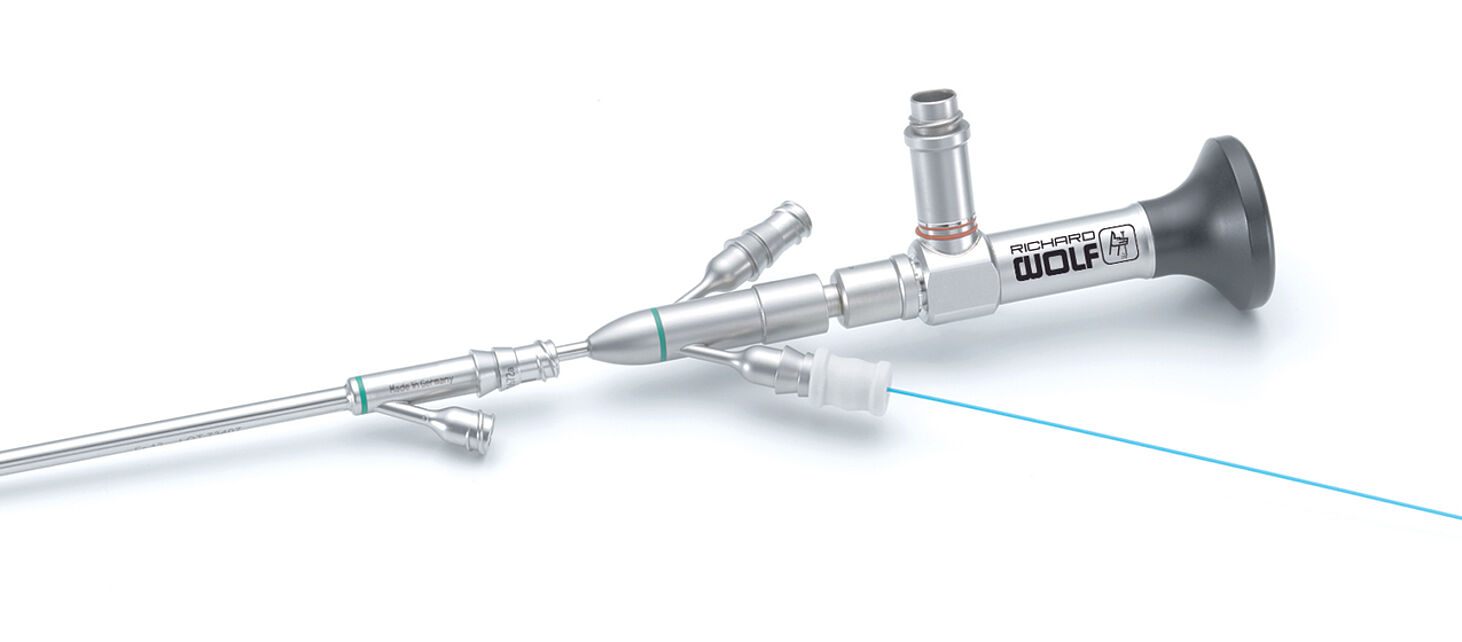

The UMP set includes the Ultra-Mini Nephroscope, one of the smallest nephroscopes on the market, with a diameter of only 3.0 Fr.
260 mm working length
The water jet sheaths and obturators are available in 11 Fr. and 13 Fr.
Suitable for treating stones 10-20 mm in size, situated in the complex system of the lower renal calices
The unique design of the water jet sheath has the advantage of stone fragment retrieval without the use of baskets or forceps

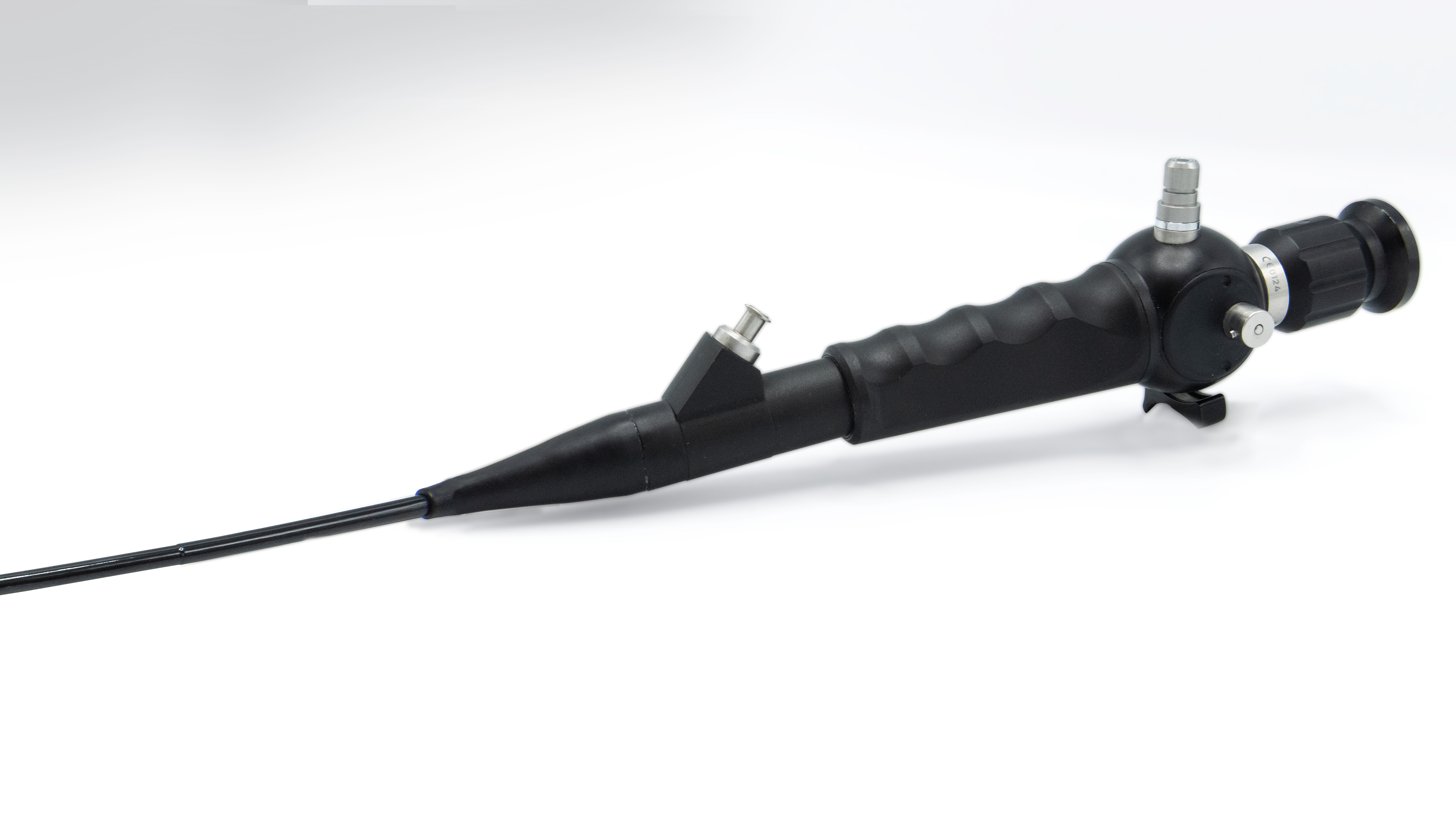

15 Fr. outer diameter with a 7.5 Fr. working channel
210° up 150° down deflection allows for access through the urethra and navigation of the bladder
Self-dilating atraumatic distal tip enables easy entry with less trauma to the patient
Lightweight and ergonomic design for optimal handling and enhanced surgeon comfort
Brake mechanism for locking the instrument tip
