ERAGONmodular is setting benchmarks in versatility and quality. This modular generation of instruments was created to cover a broad range of applications. Surgeons can rely on precision, safety and intuitive handling. ERAGONmodular is the system for countless interdisciplinary potentials and your particular laparoscopic toolbox.
All-encompassing instrument system, perfectly harmonized
Cost-efficient operations that save time
Intuitive and ergonomic
Optimized tray configuration
Sophisticated safety concept
Broad range of jaw parts with various diameters and working lengths
Numerous handle versions

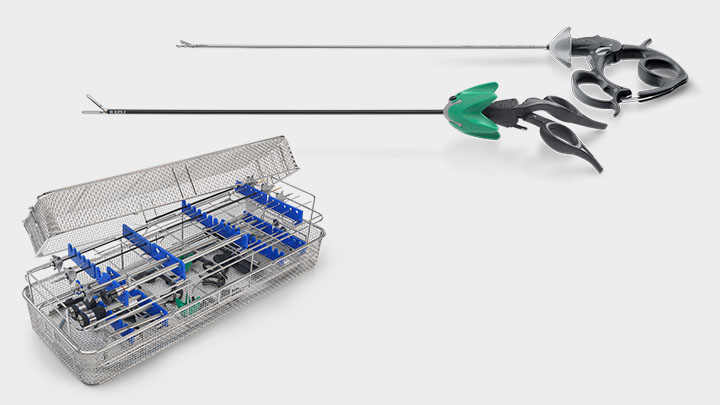

Minilaparoscopy is becoming an increasingly important technique and is now another option for hospitals and surgeons for ensuring safe surgery with virtually no scarring.
The successful 5 mm ERAGONmodular concept was used as a basis to develop three-part modular 3.5 mm instruments that satisfy the toughest standards in hygiene and application technology. The tried and proven click-it system ensures simple assembly and disassembly and is fully compatible with both the ERAGONmodular series and the new ERAGONaxial handles.
Three-part modular concept – can be dismantled completely for reprocessing
Broad range of new, additional jaw parts for diverse applications
Simple disassembly and assembly with click-it fastening technology
Customized instrument combinations
Reduced surgical trauma
Ideal in pediatric surgery - also avaliable in a working length of 240 mm

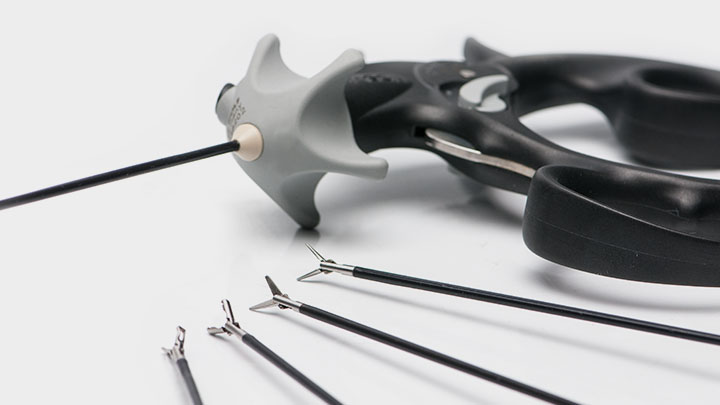

The successful 5 mm ERAGONmodular concept was used as a basis to develop the two-part modular 2 mm instruments that satisfy the toughest standards in hygiene and application technology. The tried and proven click-it system ensures simple assembly and disassembly and is fully compatible with both the ERAGONmodular series and the new ERAGONaxial handles.
Modular, two-part modular concept with proximal irrigation connection – can be dismantled completely for reprocessing
Jaw part can be rotated via the sheath tube
Compatible with the diverse range of ERAGONmodular handles, including the ERAGONaxial version
Simple disassembly and assembly with the established click-it system
If a component is damaged, only that part has to be replaced
Integrated overstrain protection to protect the sensitive joint mechanism
Further addition to the ERAGON modular
Perfectly suited to be used in pediatric surgery

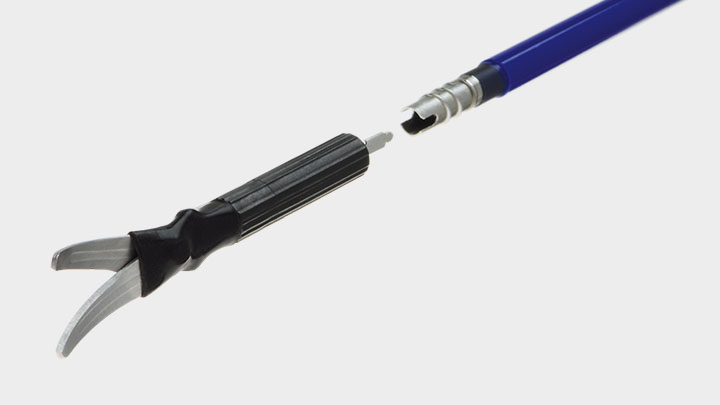

The ever demanding modular ERAGONmodublades "metzenbaum scissors" concept is a logical combination of disposable and reusable components. It delivers the outstanding cutting quality of disposable scissors, but is far much economical thanks to the low disposable proportion. At the same time, insulation extending to the joint mechanism offers additional safety when working close to organs with monopolar HF current.
More safety with insulation extending beyond the joint mechanism
Simple assembly of the scissors attachment
The reusable carrier components, which guarantee optimized stability and durability, significantly reduce running costs.

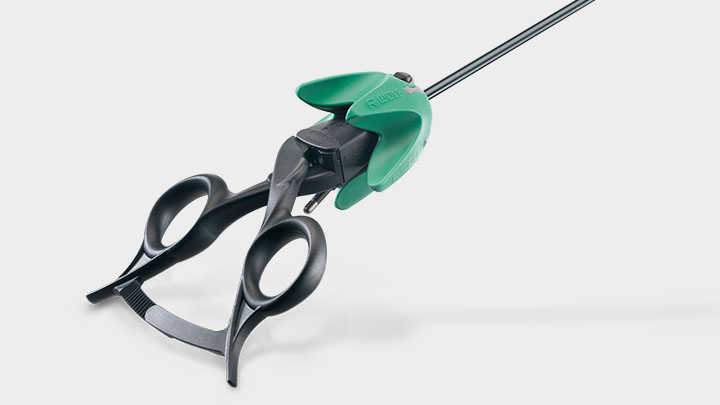

ERAGONmodular, the forceps and scissors system that has long been established for surgical procedures, can now be expanded by an axial ERAGON handle version.
ERAGONaxial combines the advantages of the existing ERAGON handle concept, such a broad contact surface, optimum control of the rotary knob, precise grip and reliable hold, with a surgical detent.
Optional rotation knob attachment for extra comfort
Simplest disassembly and assembly with click-it fastening technology
ERAGONaxial offers invigorative procedures and precision with improved handling.
Modular, ergonomic and safe, the modular ERAGONbipolar system consistently meets all these requirements.
The tried and proven click-it fastening technology vastly simplifies assembly and disassembly and permits the use of a broad range of jaw parts. The special internal joint mechanism prevents tissue and fine structures becoming trapped. In addition, the complete insulation that covers the joint mechanism as well ensures safe procedures.Which results in Coagulation Occuring only where necessary.
The focus was on creating an ergonomic ERAGON handle, taking into account both the various applications and also individual hand and finger of the user. Thanks to this special design, the user can operate the instrument in any position. As a result, relaxed and fatigue-free procedures are guaranteed.
Three-part modular concept – can be dismantled for reprocessing
Ø 5.5 mm, working length 330 mm and 450 mm
Choice of different jaw part versions
Ergonomic ERAGON handle
Simple disassembly and assembly with Click-it fastening technology
ERAGONstitch, the new, modular generation of needle holders for laparoscopy is setting a new standard in this field.
Two ergonomic handle designs, two sheath diameters, three working lengths and a total of five different jaw parts cover every user requirement. Just as we have established from the ERAGON product range, the new generation of needle holders can be dismantled into three parts and combined to suit the needs of the user.
ERAGONmodular offers surgeons every possible solution in creating their dream set of laparoscopic instruments. Ergonomic handles, all practical diameters, useful working lengths and a diverse range of jaw parts can be combined in any configuration. This universal compatibility also ensures that individual trays can comprise just a few instruments – more efficiency and the added benefit of cost control.
Efficiency with standardized laparoscopy trays
Optimized and harmonious surgical procedures
Time and costs saved with quick and reliable handling
Identically configured trays ensure clear structures and process reliability in all areas.
Broad range and customized combinations
Range of diameters and working lengths
Wide choice of jaw parts for diverse applications
Dream instrument combinations created by the modular concept
As tailered to your needs!
Axial and pistol-handle designs
Broad contact surfaces at sensitive points prevent pressure marks
Large, easily-accessible rotation knobs for rotating the jaw part tips
Sensitive detent mechanisms
Sophisticated and ergonomic handle solutions for relaxed grip and optimized operating comfort.
Safety and quality
Integrated safety concept eliminates the possibility of high-risk combinations
High-quality, durable materials and workmanship
High-quality sheath tube insulation with Halar® powder coating
Handles from glass fibre reinforced, high-performance plastic
Internal joint mechanism prevents tissue becoming accidentally trapped
Safe surgical procedures with durable and reliable instruments.
Simple and intuitive
Instruments dismantled in three parts
Tried and proven click-it system for simple, time-saving combinations
Quick assembly and disassembly (possible during surgery)
Efficient operations through smooth procedures without any loss of time.
