Instruments for elbow arthroscopy
A new benchmark in precision
The special set offers a practical range of instruments. The surgeon benefits from the perfect tuning of all components to the anatomical circumstances and optimum harmonization with all the pathologies being treated.
These features also help reduce the risks caused by delays and any resultant critical swellings.
Spatial proximity of capsule and neuro-vascular structures, and also the special intra-articular dimensions are reflected in the size-optimized auxiliary instruments. Ideal conditions for being able to safely reach even those areas with restricted access.
Nowadays, elbow arthroscopy is considered to be a standard procedure. Benefits such as faster rehabilitation, lower levels of wound pain, reduced risk of infection and less surgical trauma are convincing surgeons all over the world. However, the precise assessment of underlying pathologies, in particular instabilities, has derived significant benefit through the diagnostic possibilities offered by elbow arthroscopy. The complex anatomy of the elbow presents a huge challenge for surgeons. The Richard Wolf Elbow Set was created to offer the best possible support. A practical combination of instruments and specific, highly functional design form the platform for safe and successful intervention.
The advantages at a glance
- Markings on trocars and trocar sleeves, and also on access instruments simplify orientation and improve handling.
- The ergonomic handles give you perfect control at all times.
- The grasp with special serrated edge can be hygienically prepared in the simplest way.

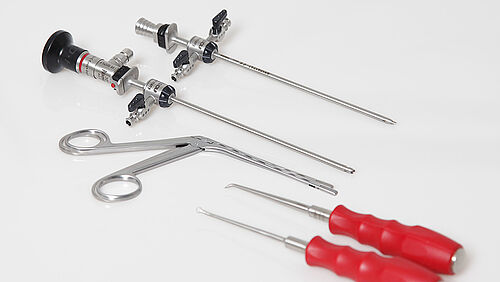

Set for arthroscopy of the elbow
|PANOVIEW telescope||Ø 2.7 mm 30°, with universal ocular, working length 185 mm, autoclavable|
|Trocar sleeve||Arthrolution, with one rotating valve, Ø 4.1 mm, working length 145 mm|
|Trocar sleeve||Arthrolution, with two rotating valves, Ø 4.1 mm, working length 145 mm|
|Trocar||sharp, with oblique tip|
|Exchangeable rod||Ø 2.7 mm, L 250 mm|
|Locking piece||for Arthrolution trocar sleeves|
|flat||4 mm||L 180 mm||polished on one side||straight||graduated|
|flat||6 mm||L 180 mm||polished on one side||angled||graduated|
|flat||7 mm||L 180 mm||polished on one side||straight||graduated|
|flat||9 mm||L 180 mm||polished on one side||straight||graduated|
Double spoon forceps
|Curette||round, upcurved, sharp at one end, 4.0 mm, working length 65 mm|
|Curette||round, cropped and upcurved, sharp at one end, 5.5 mm, working length 65 mm|
|Microfractor||30° curved, working length 65 mm|
|Microfractor||45° curved, working length 65 mm|
|Microfractor||60° curved, working length 65 mm|
|Hook probe||graduated, working length 115 mm|
Subject to modifications. Please note that some products may not be available in all countries. Please always take note of the information that is provided with the product. For more detailed information, please consult with your contact partner or directly with Richard Wolf GmbH.
