General and Long Laparoscopy Trays

General and Long Laparoscopy Trays

Providing custom protection and ultimate security.

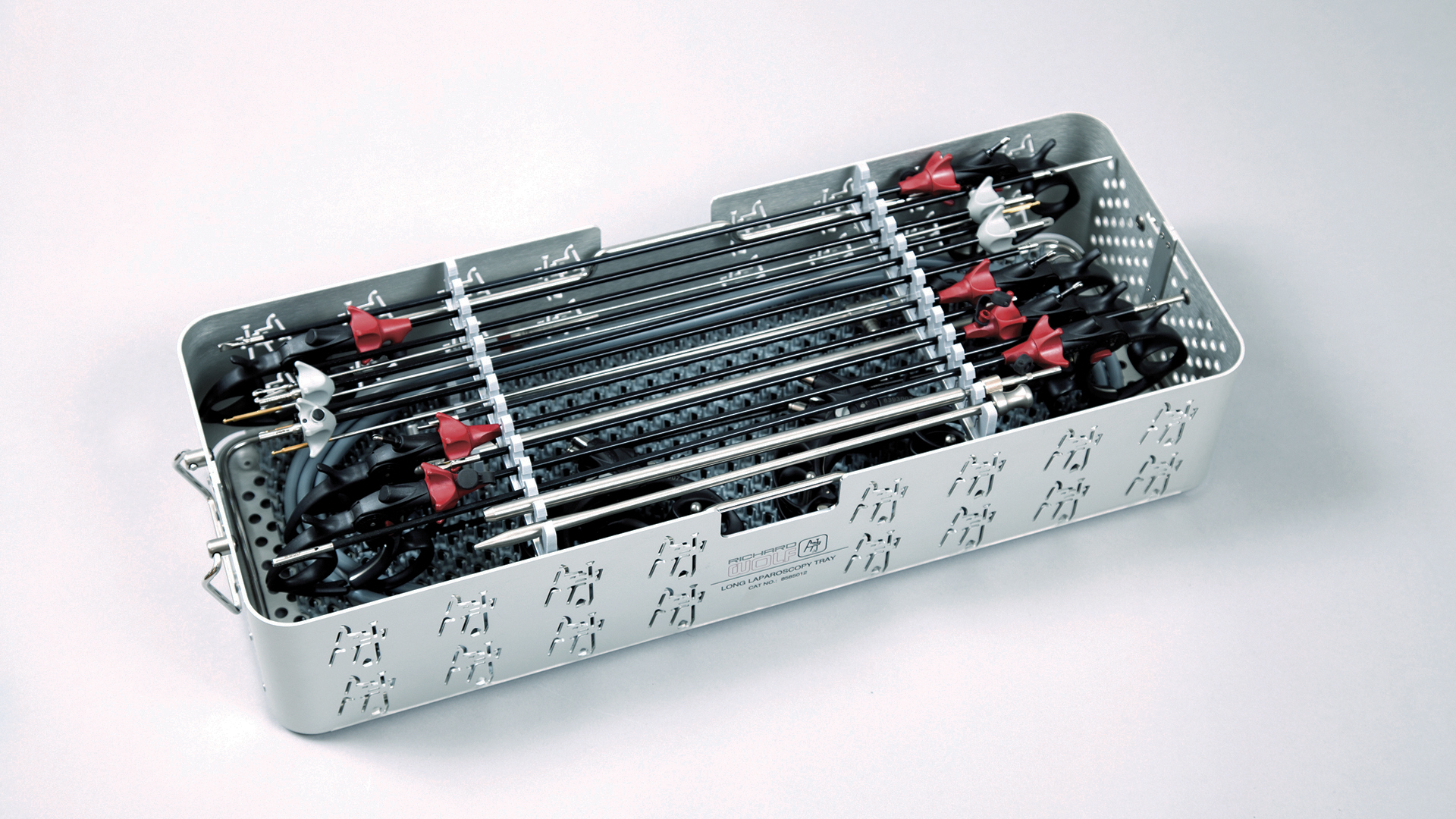

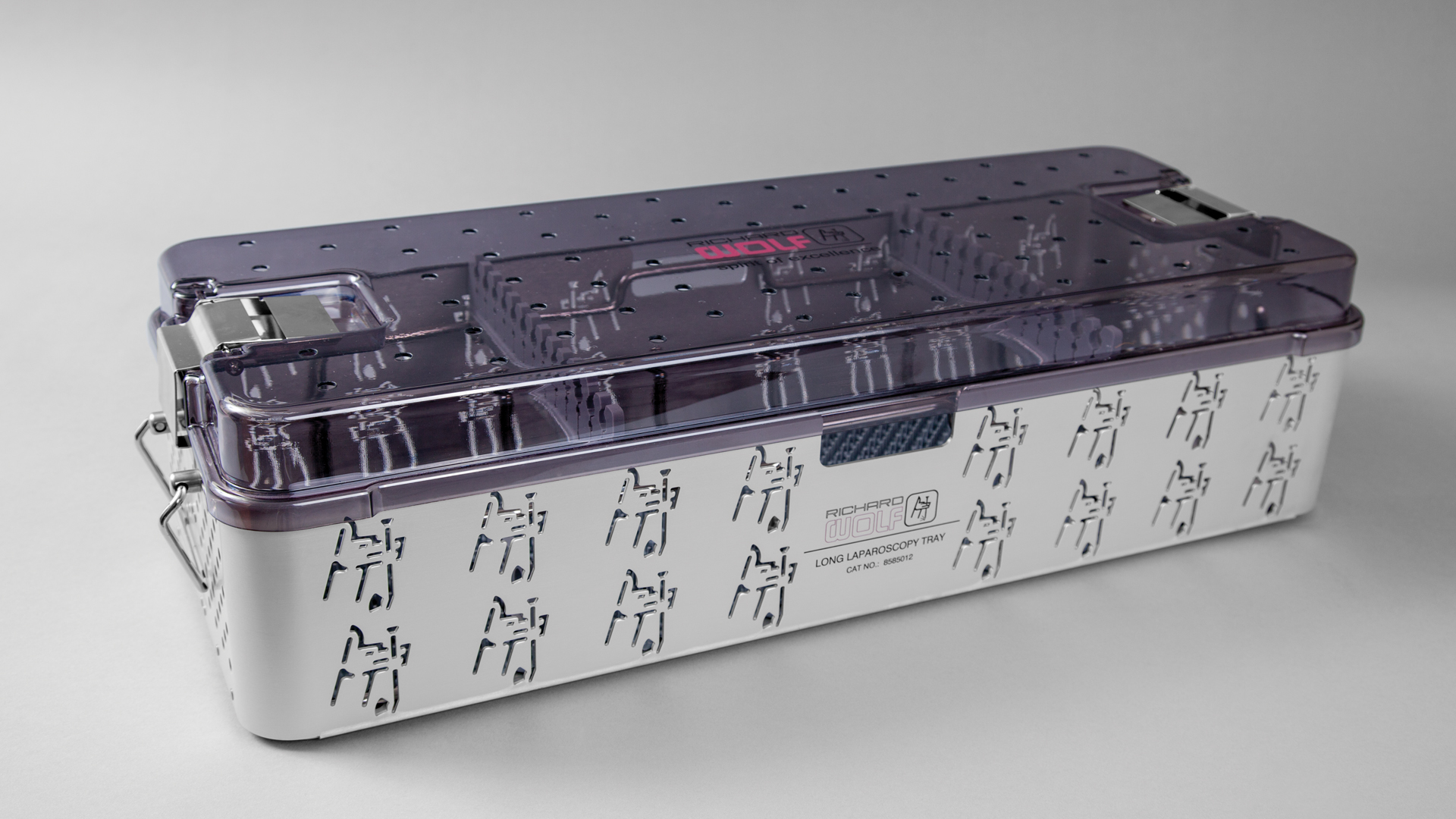

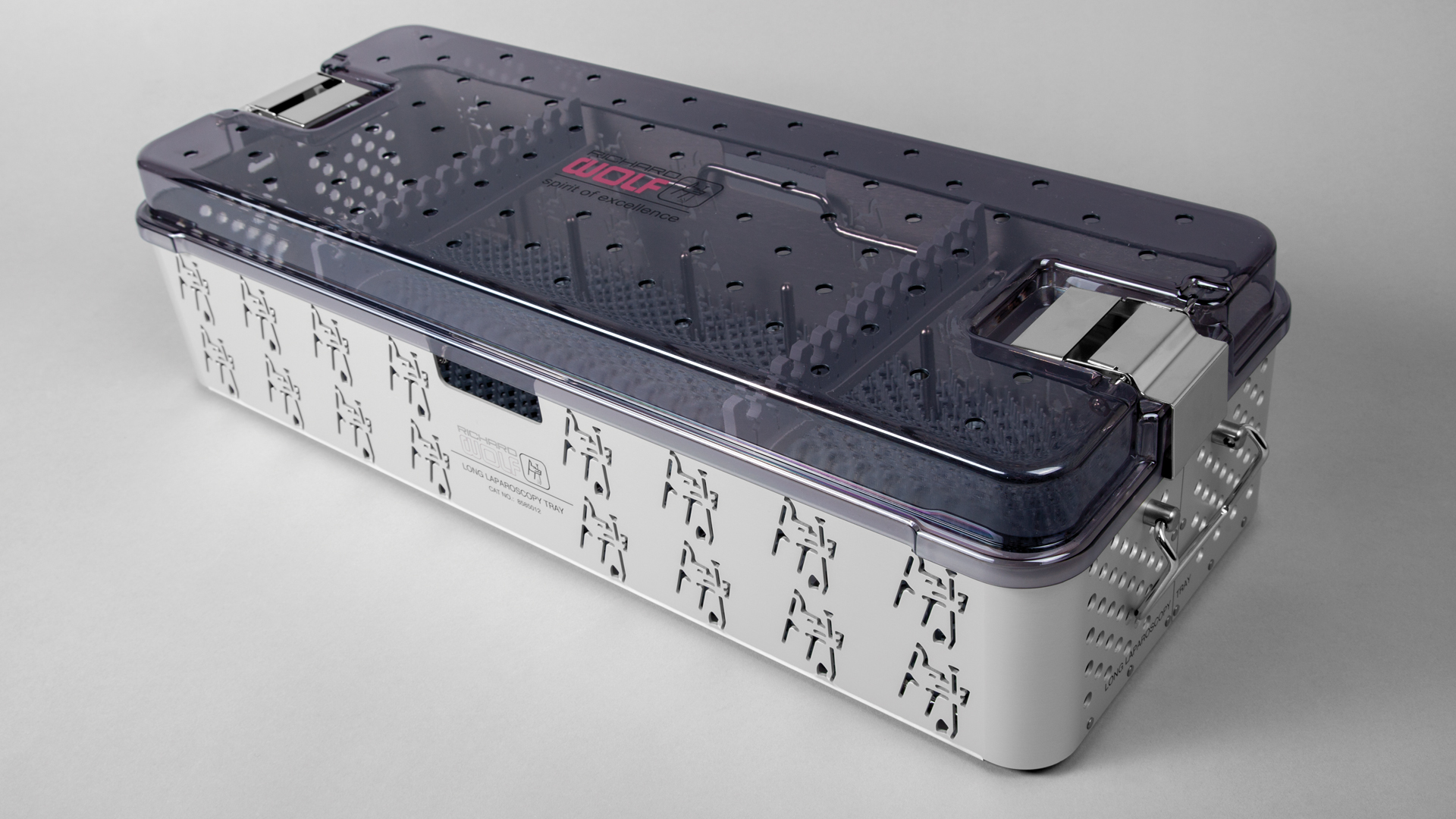

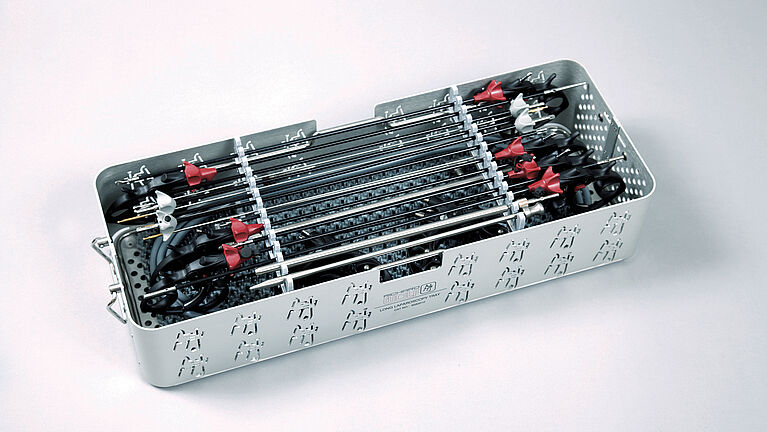

Ideal for Richard Wolf laparoscopy instruments, our storage and sterilization laparoscopy trays are suitable for both standard and long-length instruments. The domed lid accommodates the ERAGON style laparoscopic instruments, as well as other 3–10 mm diameter instruments. Cut outs on the sides of the trays provide convenient access for easy removal of the instrument carrier from the tray. Aluminum posts hold up to six handles of modular laparoscopy instruments and deep pin matting secures miscellaneous instruments. Light cables can be fitted along the inside perimeter of the tray, while brackets are available to secure laparoscopes. Designed to protect and organize instruments and other medical devices, these trays are also validated for prevac steam sterilization.

The General Laparoscopy Tray is indicated for packaging and sterilizing:

  • Up to 13 single-piece or modular standard-length (320-mm) laparoscopy instruments.

  • 3–10 mm diameter instruments.

  • One or two standard-length (320-mm) laparoscopes and a light cable.

  • Up to six handles for modular instruments.

  • Options for miscellaneous cautery tips and an electrical cord (monopolar or bipolar).



The Long Laparoscopy Tray is indicated for packaging and sterilizing:

  • Up to 13 single-piece or modular laparoscopy instruments that are either standard length (320 mm) or long length (420–440 mm).

  • 3–10 mm diameter instruments.

  • One or two laparoscopes, either standard length (320 mm), long length (420–440 mm), or a combination of both, plus a light cable.

  • Up to six handles for modular instruments.

  • Options for miscellaneous cautery tips and an electrical cord (monopolar or bipolar).

Features at a glance

  • All trays can accommodate 3–10 mm diameter instruments.

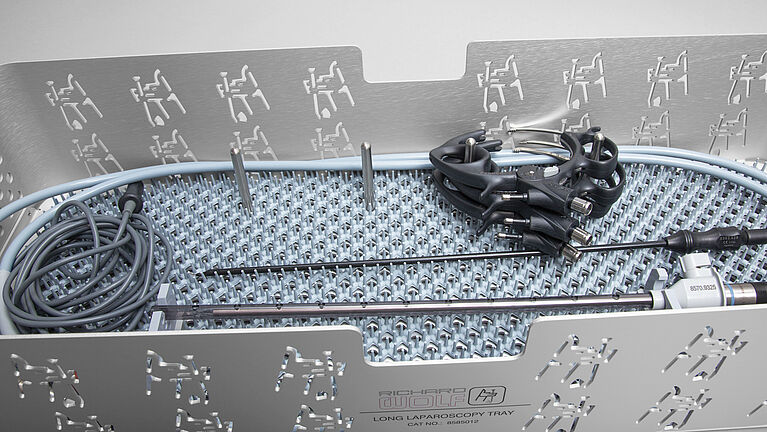

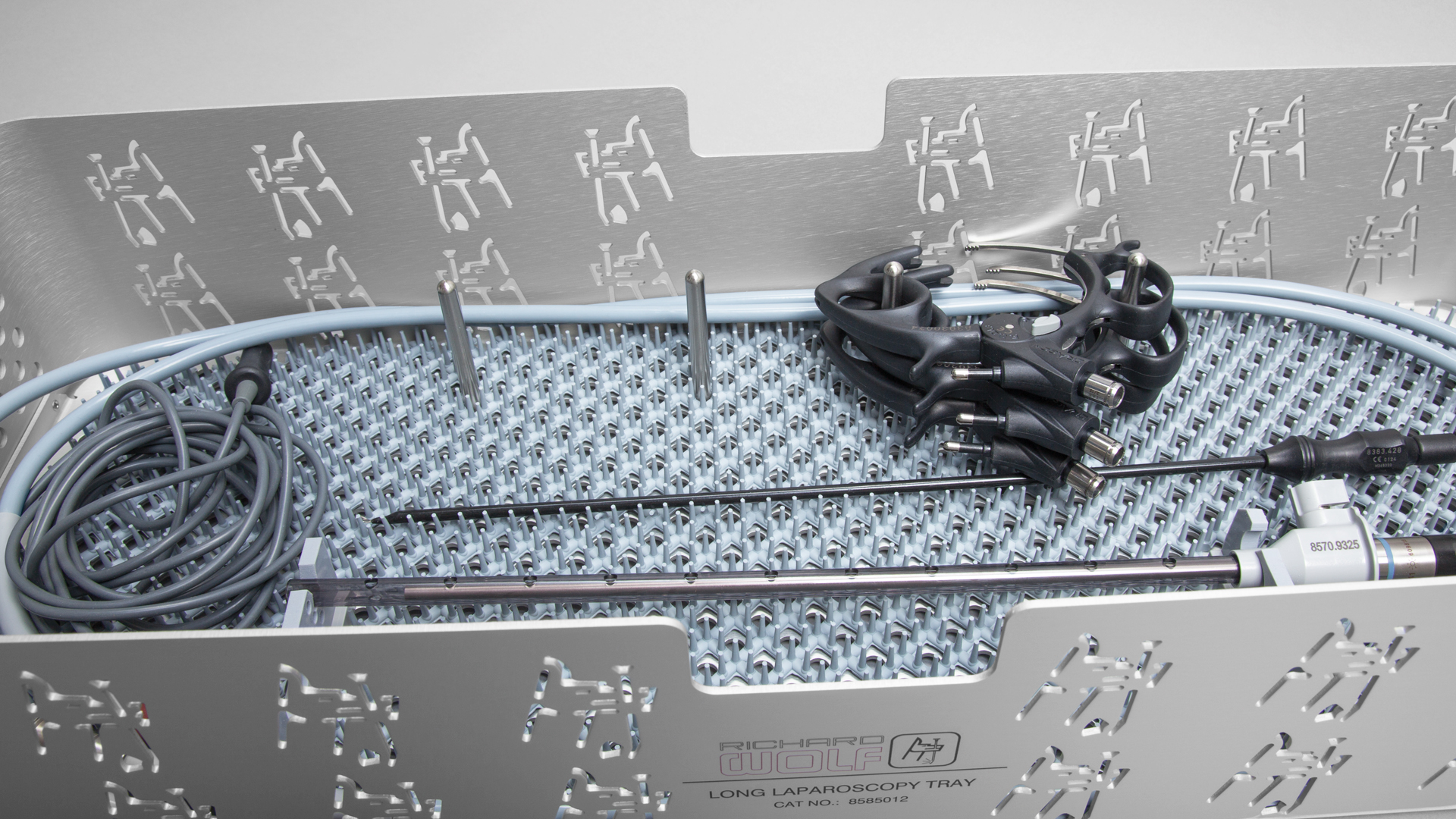

  • Silicone brackets secure and protect laparoscopes and hand instruments.
  • Cut-outs on the sides of the tray allow for easy hand access to remove the instrument rack from the tray.
  • Deep pin matting secures miscellaneous instruments and accessories.
