Disposable cleaning brushes
Cleaning Just got Easier!
Our disposable cleaning brushes offer you a high level of safety. The sophisticated concept enables brush cleaning of all Richard Wolf instruments.
Color coding helps you quickly and reliably select the validated brush for the specified instrument diameter, ensuring that you always end up with a hygienically perfect medical product.
This not only saves you time in daily clinical practice, but also a considerable amount of documentation effort.
Various brushes for the entire range of Richard Wolf instruments
Color coding
Brushes validated for the specified diameter
No reprocessing required
Brochure

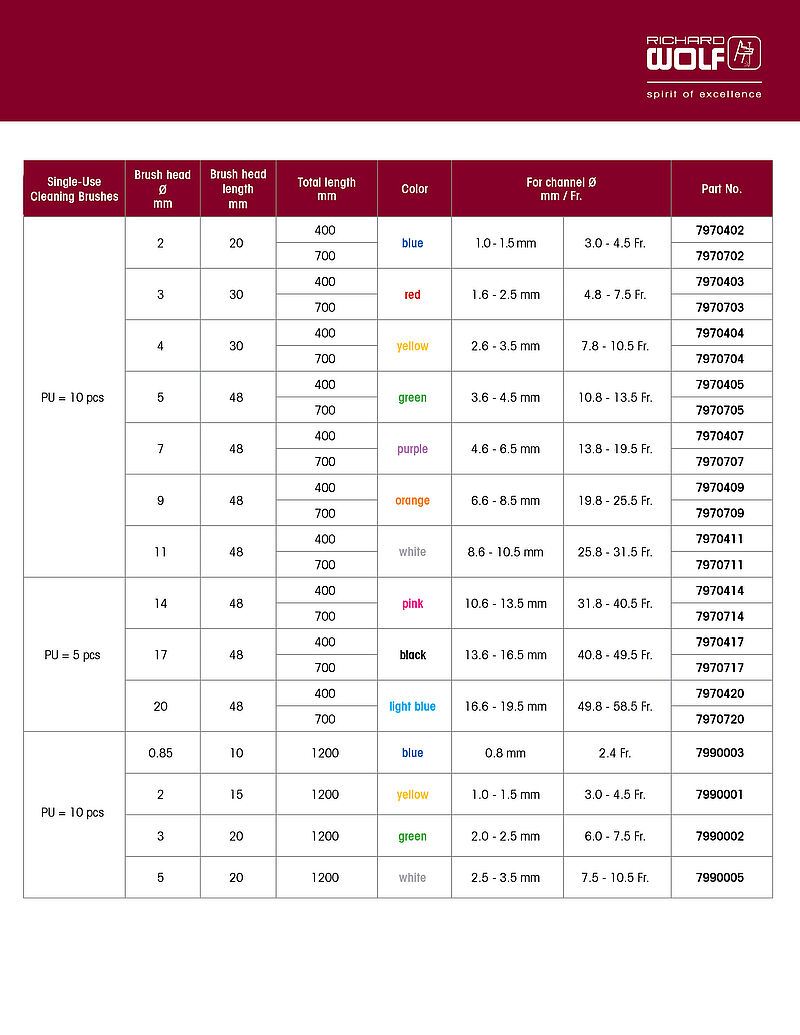

The disposable cleaning brushes for a safe and high quality reprocessing


Brush head Ø mm |
Brush length mm |
Total length mm | Color |
For channel Ø mm |
2 | 20 | 400 | blue | 1.0 - 1.5 |
2 | 20 | 700 | blue | 1,.0 - 1.5 |
3 | 30 | 400 | red | 1.6 - 2.5 |
3 | 30 | 700 | red | 1.6 - 2.5 |
4 | 30 | 400 | yellow | 2.6 - 3.5 |
4 | 30 | 700 | yellow | 2.6 - 3.5 |
5 | 48 | 400 | green | 3.6 - 4.5 |
5 | 48 | 700 | green | 3.6 - 4.5 |
7 | 48 | 400 | purple | 4.6 - 6.5 |
7 | 48 | 700 | purple | 4.6 - 6.5 |
9 | 48 | 400 | orange | 6.6 - 8.5 |
9 | 48 | 700 | orange | 6.6 - 8.5 |
11 | 48 | 400 | white | 8.6 - 10.5 |
11 | 48 | 700 | white | 8.6 - 10.5 |
14 | 48 | 400 | pink | 10.6 -13.5 |
14 | 48 | 700 | pink | 10.6 -13.5 |
17 | 48 | 400 | black | 13.6 - 16.5 |
17 | 48 | 700 | black | 13.6 - 16.5 |
20 | 48 | 400 | light blue | 16.6 - 19.5 |
20 | 48 | 700 | light blue | 16.6 - 19.5 |
Brush head Ø mm |
Brush length mm |
Total length mm | Color |
For working and laser channel Ø mm |
2 | 20 | 1200 | yellow | 1.0 - 1.5 |
3 | 30 | 1200 | green | 2.0 - 2.5 |
0.85 | 10 | 1200 | blue | 0.8 |
5 | 20 | 1200 | white | 2.5 - 3.5 |
Brush head 1 Ø mm |
Brush head 2 Ø mm |
Brush length 1 mm |
Brush length 2 mm |
Total length mm | Color |

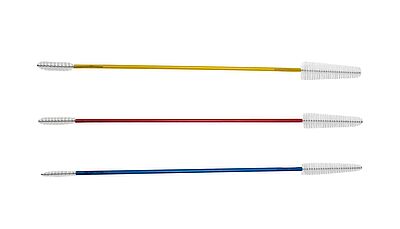

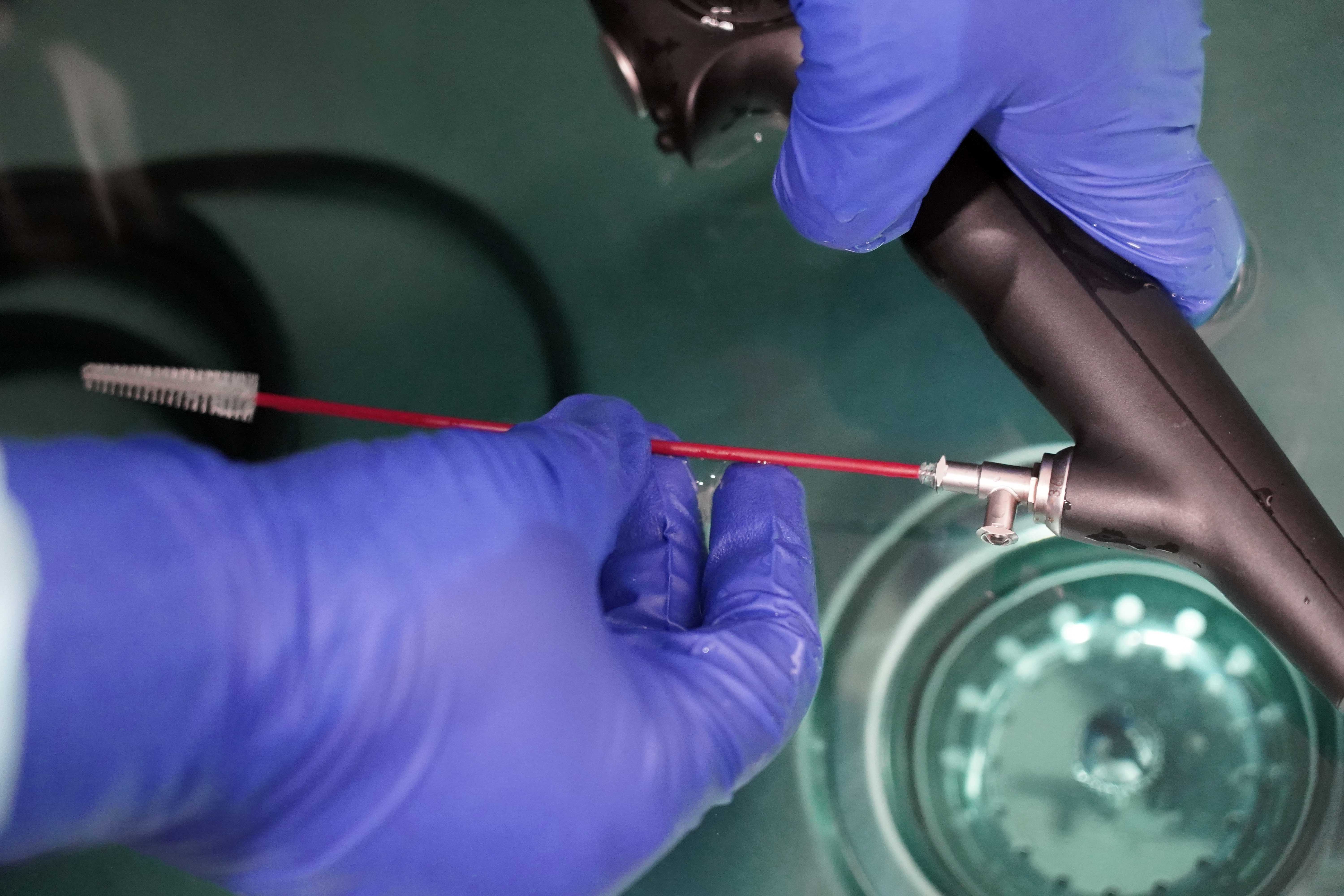

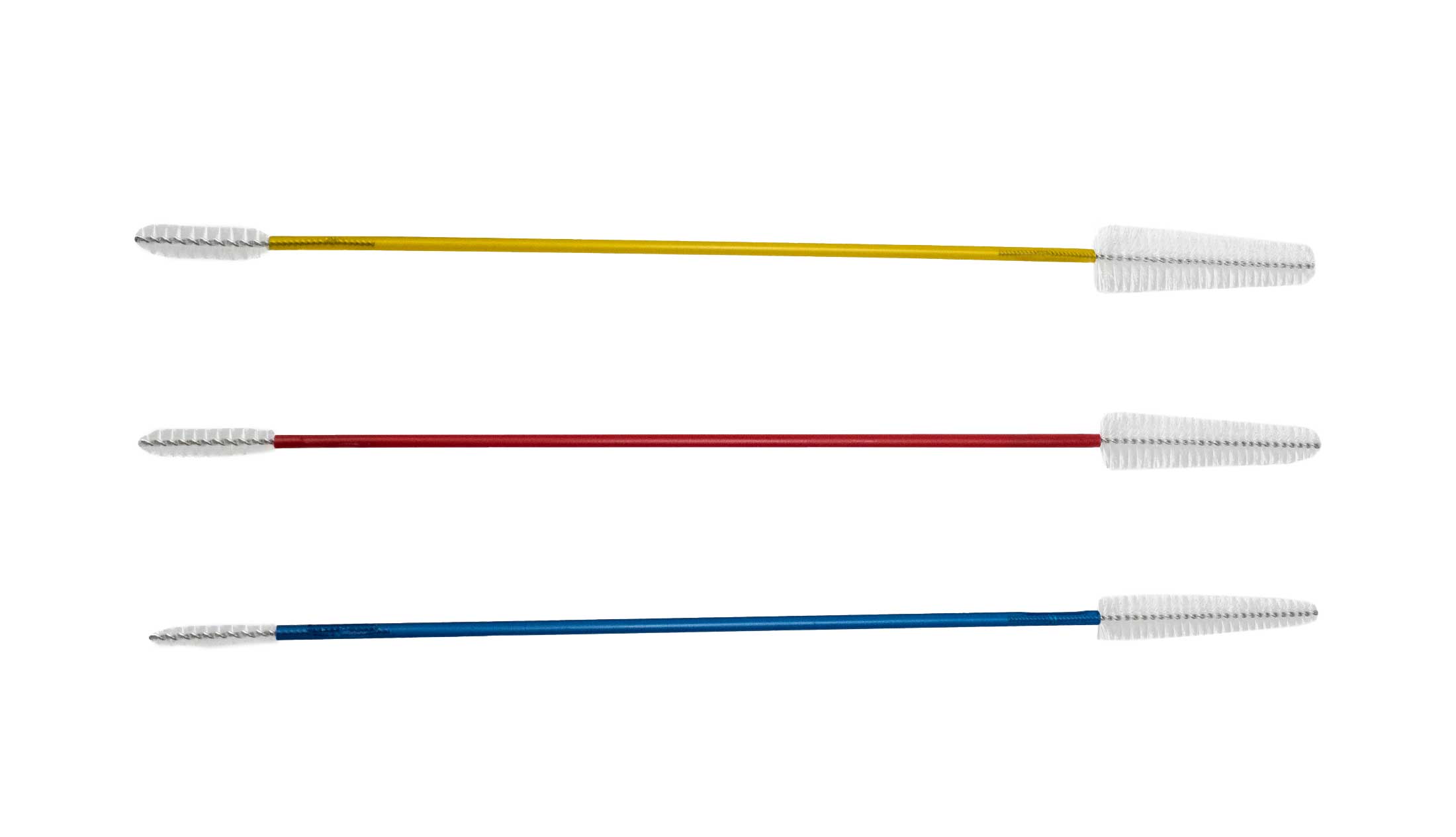

For stopcock inserts with nubs |
conical 4-7 | 3 | 35 | 20 | 180 | blue | 2 |
conical 5-9 | 4 | 35 | 20 | 180 | red | 3 |
conical 6-11 | 5 | 35 | 20 | 180 | yellow | 4 |
Comparison Disposable Brushes
Here you can see a comparison of the current RWMIC brushes and the GbmH brushes

Storage rack for cleaning brushes
for storing and easily removing cleaning brushes
for wall mounting
material: stainless steel
reusable

Dispenser for cleaning brushes
for storing and easily removing cleaning brushes
for table mounting
material: stainless steel
reusable
