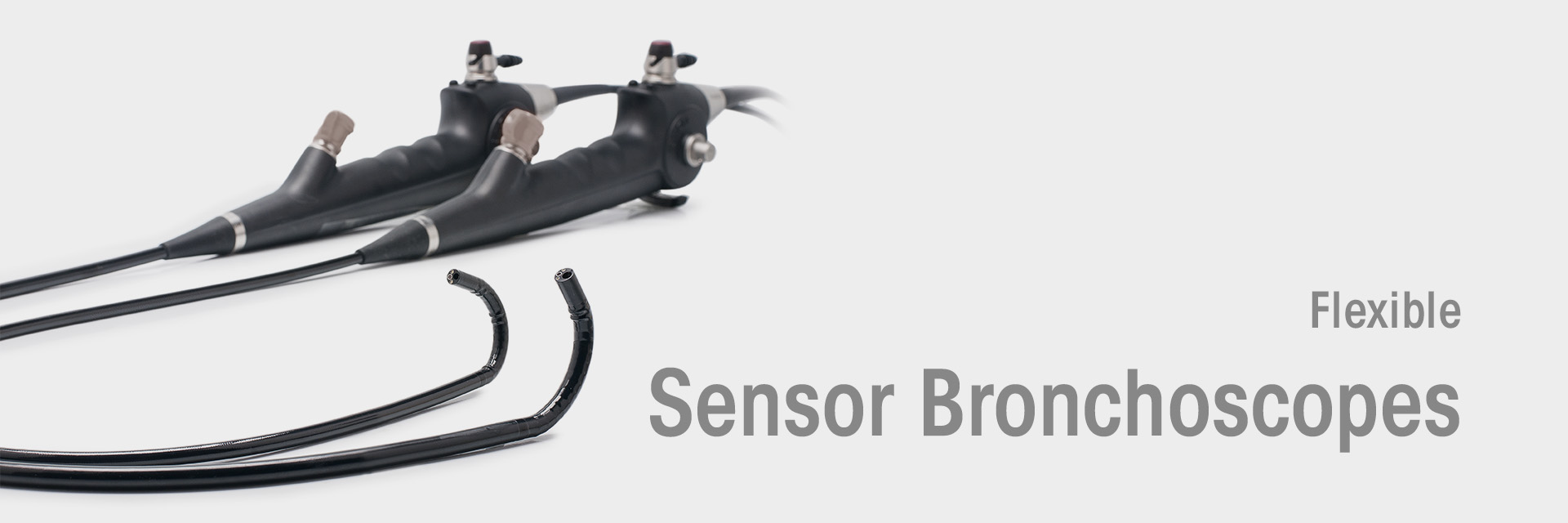

Flexible sensor bronchoscopes
for ENDOCAM Logic and ENDOCAM D
The clinical applications of flexible bronchoscopes have expanded significantly beyond their traditional use in pulmonology. Today, they play an essential role in airway management procedures in anesthesiology, intensive care medicine, and emergency medicine.
In a wide range of clinical settings, flexible bronchoscopes provide an efficient and minimally invasive solution, enabling direct visualization of the airways and allowing clinicians to safely manage even challenging situations.
Current Richard Wolf flexible bronchoscopes are available in standard outer diameters of 5.2 mm and 6.2 mm. They are designed for both routine clinical use and advanced diagnostic or interventional procedures.

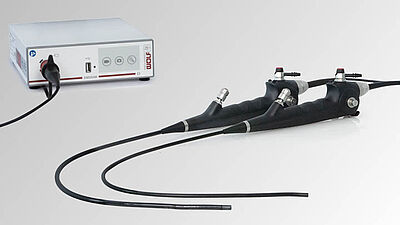

Both instruments are fully compatible with the compact ENDOCAM D camera system, which is prepared for VESA 100 mounting and can therefore be integrated into clinical environments in a particularly space-saving manner.
- Sheath: Ø 3.3 mm
- Distal tip: Ø 3.3 mm, beveled
- Working channel: Ø 1.5 mm
- Articulation: 150° upward and downward
- Working length: 680 mm
- Illumination via two LEDs, no separate lightsource necessary
- Image sensor integrated in instrument tip – direct image capture without transmission losses
- Two programmable camera head buttons
- Special Imaging Mode (SIM) compatible
- Ergonomic handle
- Axial cable outlet
- Compatible with ENDOCAM Logic 4K & ENDOCAM Logic HD
- 5.2 mm or 6.2 mm outer diameter of the atraumatic distal endoscope tip
- 2.2 mm or 3.0 mm working channel diameter
- 600 mm working length
- +180°/-140° bending upwards and downwards
- Lighting via two distal LEDs
- Image sensor integrated into the instrument tip – direct image capture without any loss of transmission
- Capture of still images and video sequences using the control buttons on the handle
- Ergonomic handle design
- Axial cable outlet
- Compatibile with ENDOCAM D
Subject to modifications. Please note that some products may not be available in all countries. Please always take note of the information that is provided with the product. For more detailed information, please consult with your contact partner or directly with Richard Wolf GmbH.
