Sterilization basket system
The universal solution
The universal sterilization basket system from Richard Wolf safely holds and protects valuable instruments while sterilization, storage, and transportation.
This exemplary system combines functionality with flexibility and safety. The standard sizes of the basket system can be fitted with sterile packaging or can also be sterilized in sterilization containers, such as those provided by Martin, Aesculap, or Wagner, for example.
The patented double frame prevents the basket mesh from becoming frayed and hence causing injury to the user or damage to the sterilization packaging. This double frame therefore ensures maximum safety and a long service life, while also providing minimum contact surface because of the special design of the silicone holders. Top-heavy instruments are securely fixed with an open and a closed silicone holder. In addition, silicone stop plates can also prevent instruments with very small diameters from slipping inadvertently. The set can be configured in almost any arrangement thanks to the silicone holders which are easy to exchange.
The advantages at a glance
- Minimum contact surface – the steam has unlimited contact to all surfaces
- Flexible holders for customized set configurations
- Extensive accessories
- Stackable
- Increased safety during sterilization, storage, and transport
Functionality, flexibility, and safety

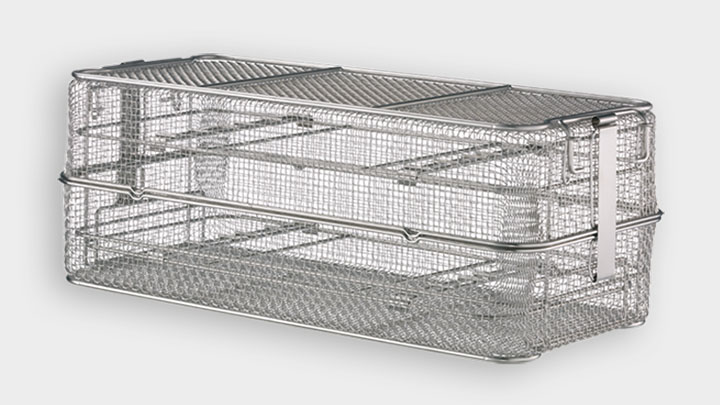

Instrument basket, high – standard
- Dimensions (L x W x H): 530 x 250 x 200 mm
Comprising:
- Basket lower part
- Basket lid, high
- Spring lock 2x
- Instrument rack, high
- Instrument rack, low
- Support bar 4x

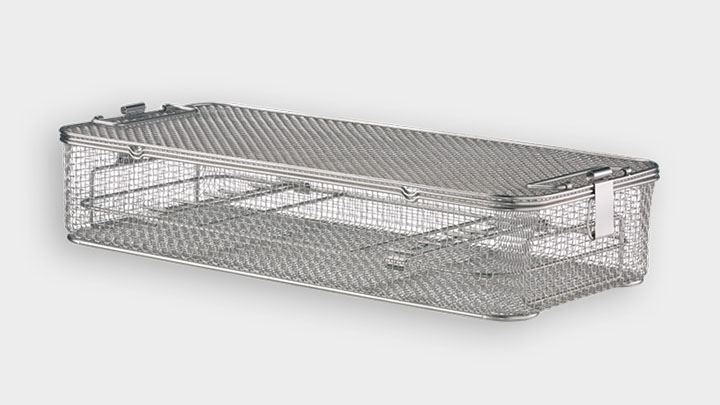

Instrument basket, low – standard
- Dimensions (L x W x H): 530 x 250 x 108 mm
Comprising:
- Basket lower part
- Basket lid, flat
- Spring lock 2x
- Instrument rack, low
- Support bar 2x

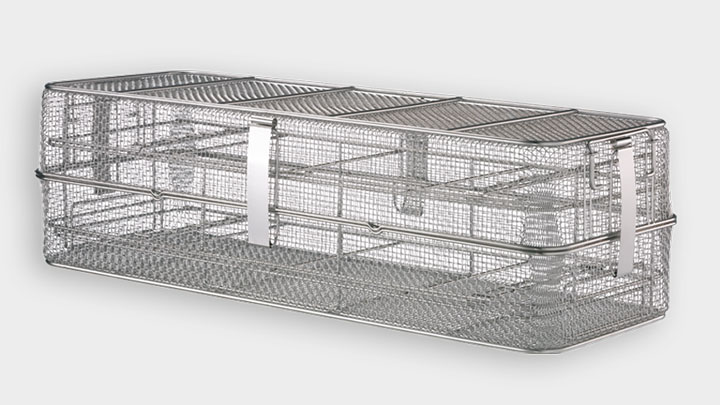

Instrument Basket, high – long
- Dimensions (L x W x H): 725 x 275 x 200 mm
Comprising:
- Basket lower part
- Basket lid, high
- Spring lock 4x
- Instrument rack, high
- Instrument rack, low
- Support bar 4x
Instrument basket, low – long
- Dimensions (L x W x H): 725 x 275 x 108 mm
Comprising
- Basket lower part
- Basket lid, flat
- Spring lock 4x
- Instrument rack, low
- Support bar 2x

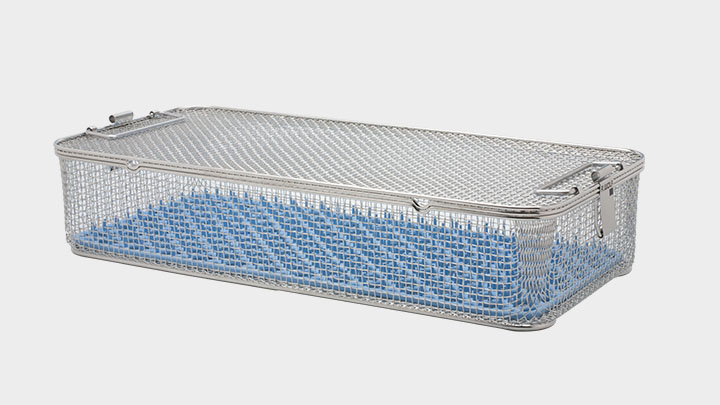

Universal instrument basket, low
- Dimensions (L x W x H): 530 x 250 x 108 mm
Comprising:
- Basket lower part
Basket lid, flat
Spring lock 2x
Silicone mat “Large Diamond”
- Support bar for silicone holders, double
- Silicone holder, closed, triple, for instruments from ø 8 mm – 14.5 mm
- Silicone holder, open, triple, for instruments from ø 8 mm – 14.5 mm
- Silicone holder, closed, for up to 5 items, for instruments from ø 1 mm – 7.5 mm
- Silicone holder, open, for up to 5 items, for instruments from ø 1 mm – 7.5 mm
- Silicone holder, closed, for up to 7 items, for instruments from ø 1 mm – 7.5 mm
- Silicone holder, open, for up to 7 items, for instruments from ø 1 mm – 7.5 mm
- Silicone stop plate for ensuring the axial position of instruments with small diameters
- Starter Set of silicone holders for urology / arthroscopy, consisting of: 3x 8584.9501, 3x 8584.9511, 1x 8584.9701, 1x 8584.9711
- Starter Set of silicone holders for laparoscopy / surgery / gynecology, consisting of: 3x 8584.9501, 3x 8584.9511, 1x 8584.9201, 1x 8584.9211
- System small part basket 1/8, dimensions (L x W x H): 121 x 121 x 35 mm
- Locking pin, e.g., for handles, pack size = 2 pcs
- Set of fixation brackets, consisting of: O-ring set, 2x angle bracket, 1x Allen wrench
- O-ring set (replacement part), consisting of: 1x O-ring 90 x 3 mm, 1x O-ring 116 x 3 mm
- Silicone mat “Large Diamond”
Subject to modifications. Please note that some products may not be available in all countries. Please always take note of the information that is provided with the product. For more detailed information, please consult with your contact partner or directly with Richard Wolf GmbH.
